Bluetooth Long Distance Reader

You are here

Info

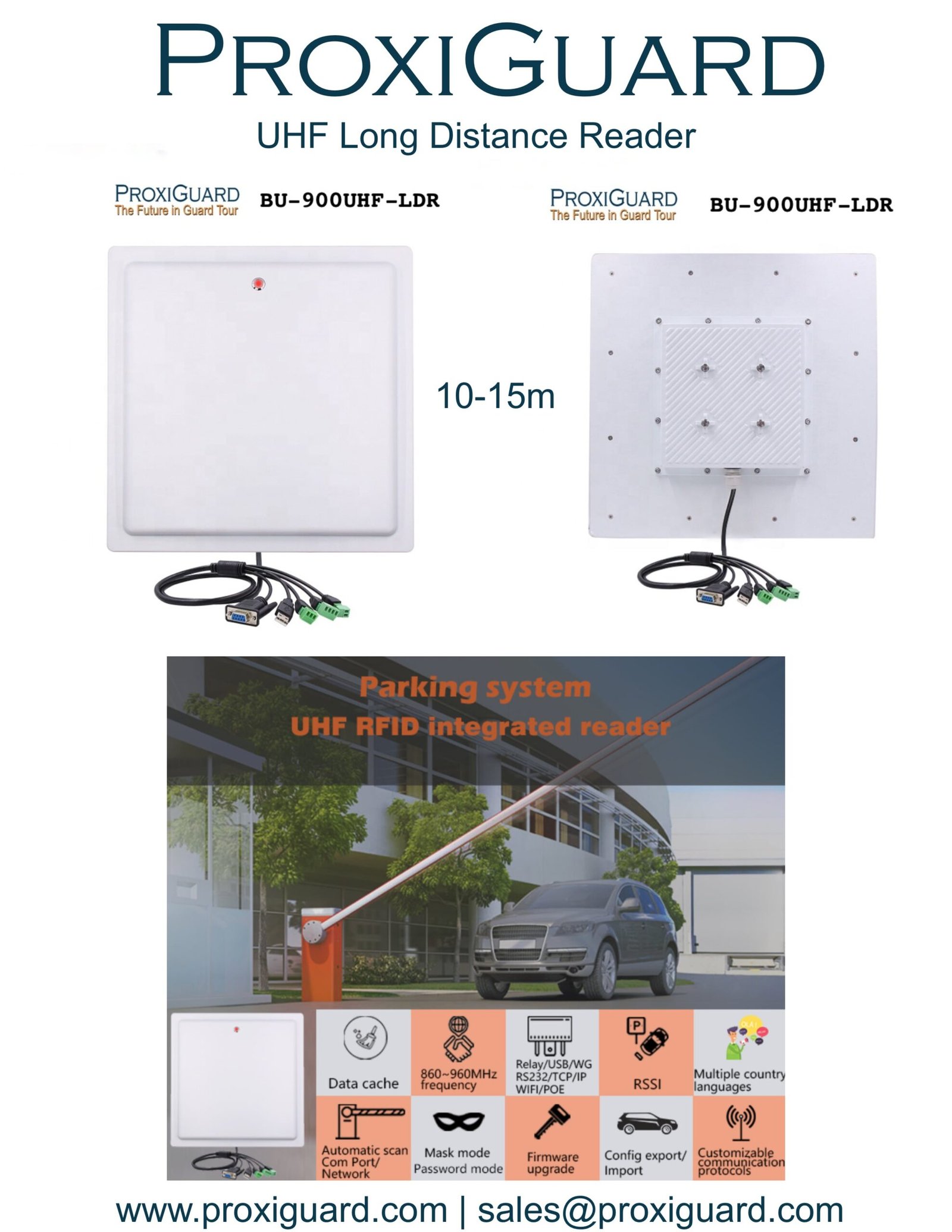

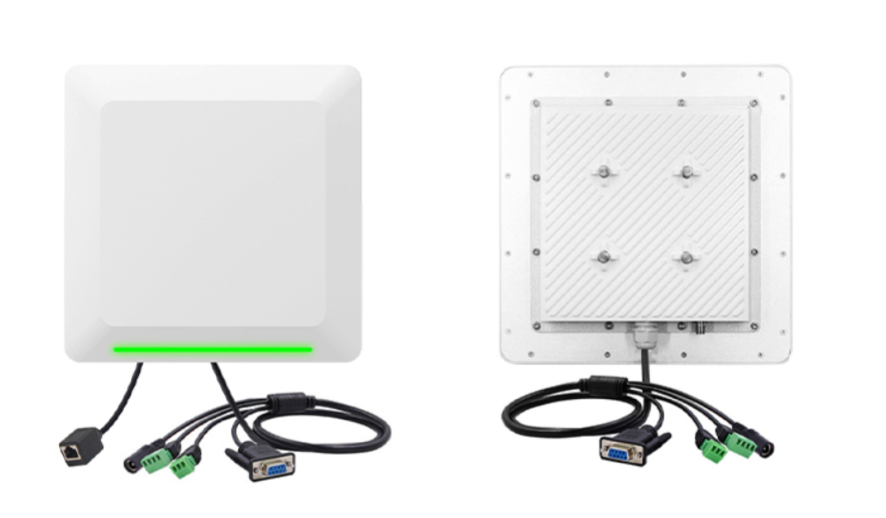

ProxiGuard Long Distance Reader BU-BT820



  1. High Reading speed,card can be read in 10-40km/h without vehicle stop
  2. Long range reading distance,1-20m
  3. Advanced CDMA communication technology for use and no interferencebetween adjacent lanes
  4. Reading direction can be adjusted discretionarily

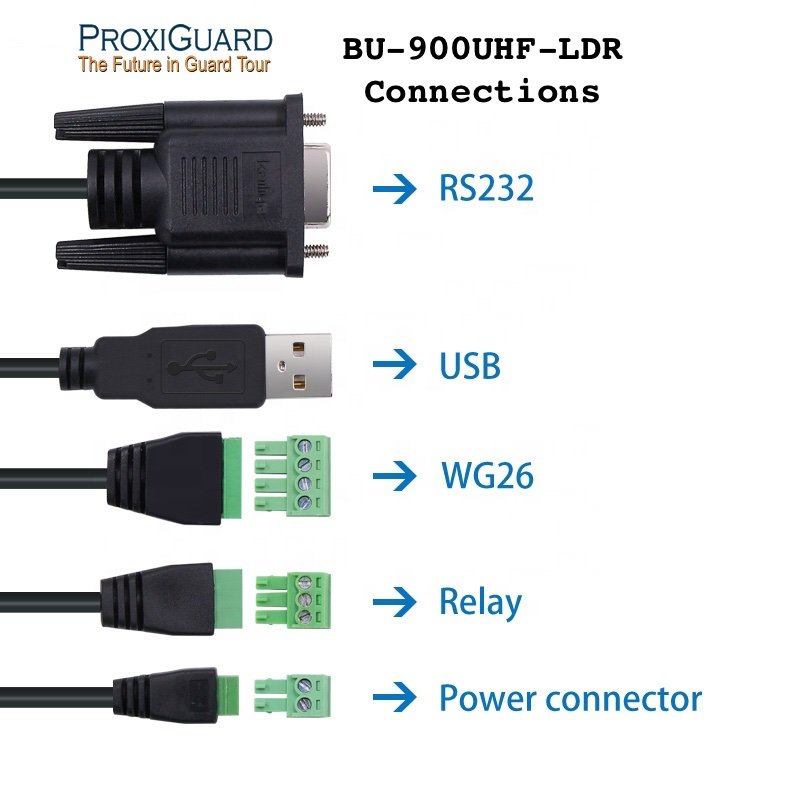

  5. Communication output: Wiegand26

Technical Parameters:

  • Working voltage:DC12V 3A
  • Bluetooth power:5W
  • Working frequency:433MHZ Infrared frequency:38KHZ
  • Reading Angle: 80degrees Reading distance:1-20m
  • Label protocol: CDMA
  • Relay output. The relay will close 100ms when read the card
  • Interface type:Wiegand26/34
  • Working Temperature:-30°C——+75°C
  • Storage temperature: -45°C——+95°C

Relative humidity: max 95%
